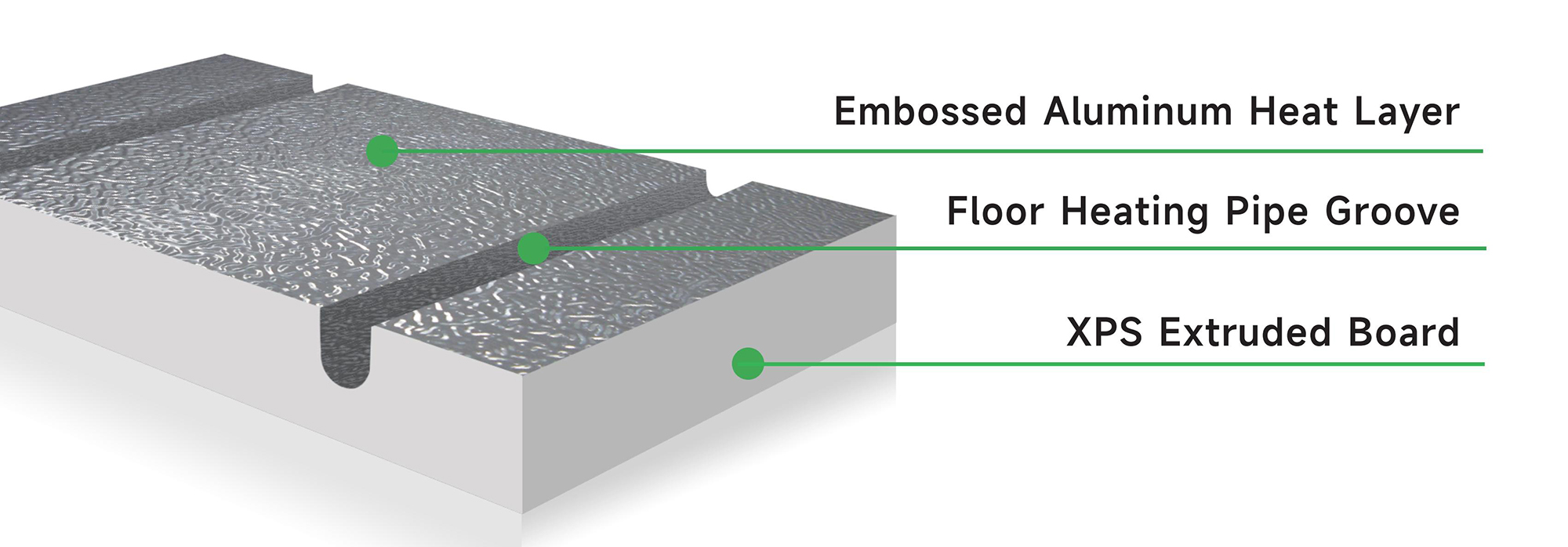

Aluminum Laminate Underfloor Heating Panel Composed of high-strength, high-compression XPS extruded polystyrene board and a heat distribution layer (>0.2mm thick embossed aluminum plate) attached to its surface. Produced in a factoryusing automated production lines, it can be assembled on-site. The surface features grooves at fixedintervals for laying heating pipes.

Advantage:

·Thermal insulation and high compression resistance

Increased floor height, thermal insulation, high strength and pressure resistance, reducedbuilding loads, shortened construction periods, and lower operational costs.

·Genuine aluminum sheet, heats up quickly

·100% Pure raw materials, more environmentally friendly

Crystal-grade polystyrene raw materials, carbon dioxide foaming technology, free formaldehyde levels ≤0.025 mg/m2.h.

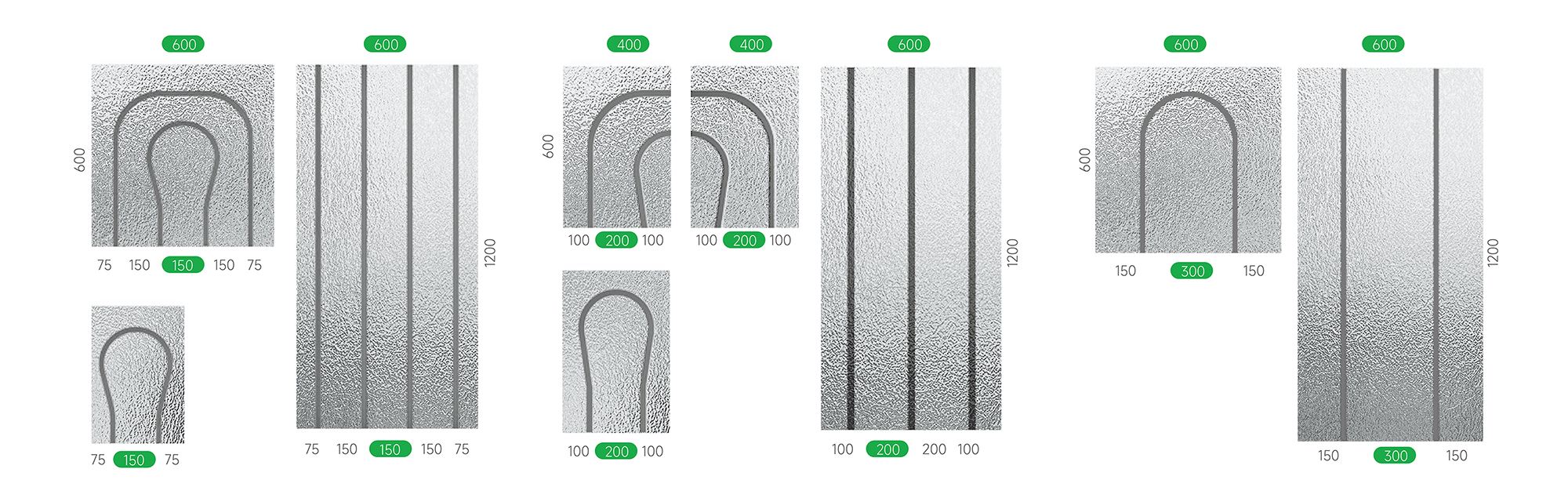

·Ω-shaped pipe grooves, more standardized

Prefabricated Ω-shaped standard grooves are integrally molded, which fixes the underfloor heating pipes,efficiently transferring heat.

·Wide application, a new solution for prefabricated construction
